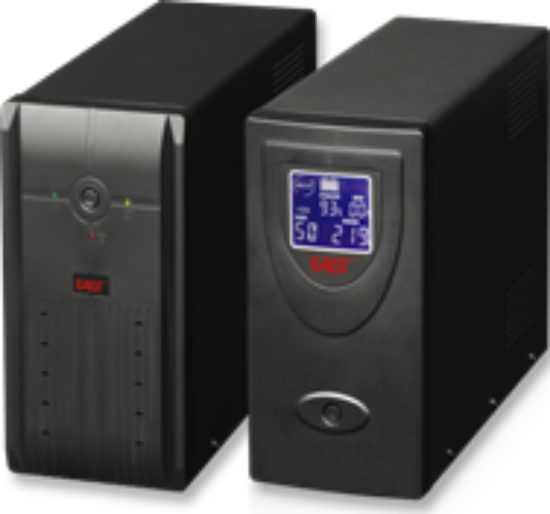

LineInteractive UPS

SKU: LineInteractive_UPS

LED display or LCD display selectable Microprocessor-based digital control Boost and buck AVR for voltage stabilization Auto sensing frequency Wide input voltage range with dual input voltage (115V & 220V) Power-on self test Cold start Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time Short circuit, battery overcharge / overdischarge, overload, surge protections Automatic charging in OFF mode Optional no-load shutdown Optional RS232 / USB communication port and RJ11 / RJ45 protection Unattended safety shutdown: system alarm and auto Power-On / Off by RS232 or USB interface communicating with PC

0.00৳

LED display or LCD display selectable
Microprocessor-based digital control
Boost and buck AVR for voltage stabilization
Auto sensing frequency
Wide input voltage range with dual input voltage (115V & 220V)
Power-on self test
Cold start
Auto restart when mains power is restored
Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge
Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time
Short circuit, battery overcharge / overdischarge, overload, surge protections
Automatic charging in OFF mode
Optional no-load shutdown
Optional RS232 / USB communication port and RJ11 / RJ45 protection
Unattended safety shutdown: system alarm and auto Power-On / Off by RS232 or USB interface communicating with PC

Bi-volt UPS 600 - 2000VA

MODEL	BX 600	BX 800	BX 1200	BX 1500	BX 2000
Capacity	600VA/360W	800VA/480W	1200VA/720W	1500VA/900W	2000VA/1200W
INPUT
Voltage	115 Vac: 93~150 Vac;
	220 Vac: 180 ~ 270 Vac (Bi-volt input)
Frequency	60 Hz ± 10%
OUTPUT
Voltage	115 Vac ± 10%
Frequency	60 Hz ± 1%
Waveform	Pure sine wave (mains mode); Simulated sine wave (battery mode)
Transfer time	Typical 2 ~ 7 ms; Max. 10 ms
BATTERIES
DC Voltage	12 V		24 V
Configuration	12 V / 7 Ah × 1	12 V / 8 Ah × 1	12 V / 7 Ah × 2	12 V / 8 Ah × 2	12 V / 17 Ah × 2
					12 V / 38 Ah × 2
Recharge Time	6 ~ 8 h
COMMUNICATIONS
USB / RS232 (optional)	Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / Windows®7 / 8 / 10
OTHERS
Protections	Short circuit - battery overcharge – overdischarge – overload - surge
Humidity	20 ~ 90% RH @ 0 ~ 40℃ (non-condensing)
Noise level	≤45 dB (1m)
Net /Gross weight (kg)	6.1 / 6.6	7.3 / 7.8	11.3 / 12.0	12.8 / 13.5	27.0 / 28.0
					43.0 / 45.0
Dimensions (W×D×H ) (mm)	95×320×165		125×380×220		191×440×250
					195×495×360
Packaged dimensions (W×D×H) (mm)	145×375×230		180×450×295		262×520×330
					276×576×456
All specifications are subject to change without notice.
Custom-made specifications are acceptable.
