This series of UPSs is the ideal emergency power supply solution for protecting critical equipment from power blackouts, brownouts and surges. A typical application is that during a power outage this UPS enable an elevator system to come to the nearest floor and door to open so that people would not get stuck in an elevator. Features  Wide input voltage range  Selectable LCD display, 3 LED display and 6 LED display  Microprocessor-based digital control  Intelligent battery management  Unattended function available  Support starting and running without battery  Superior protection and automatic system recovery  Wall / vertical mounting

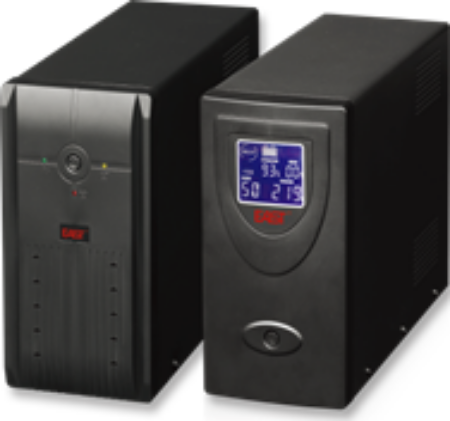

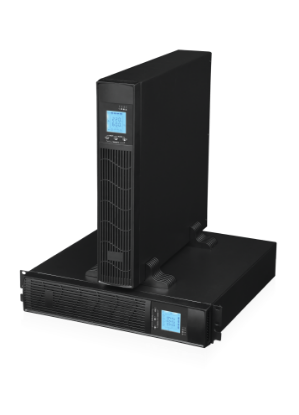

A line-interactive UPS maintains the inverter in line and redirects the battery's DC current path from the normal charging mode to supplying current when power is lost. In this smart design, the battery-to-AC power inverter is always connected to the output of the UPS. When the input AC power is normal, the inverter of the UPS is in reverse operation and provides battery charging. Once the input power fails, the transfer switch will open and the power will flow from the battery to the UPS output. This design offers additional filtering and yields reduced switching transients since the inverter is always on and connected to the output.

Alpha Pro Series UPS is on-line double-conversion UPS with advanced full-time DSP control technology and input power factor correction, it is featured with output power factor 0.9 which enable to delivering more stable and clean power without interruption for critical equipment. Besides sufficient runtime as backup power, Alpha Pro extensible model with powerful battery charger can be fitted with external battery packs for longer runtime requirements. In addition to some standard features, like cold start, wide input range, Alpha Pro is also featured with many advanced features, such as auto fan speed control, ABM, ECO mode, frequency conversion mode etc.

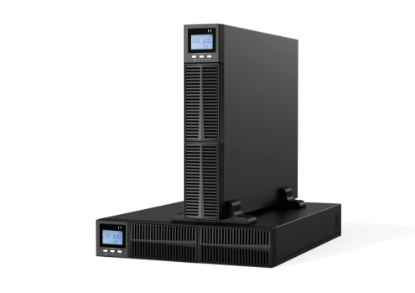

Alpha Pro RT Series UPS is the high density version of on-line double-conversion UPS with advanced full-time DSP control technology and input power factor correction, it is featured with output power factor 0.9 which enable to delivering more stable and clean power without interruption for critical equipment. Its Rack/Tower convertible design can be fitted to multiple applications, such as telecommunication, storage systems, medical systems, industrial applications especially ideal for blade severs. For critical business continuity applications requiring long runtimes, Alpha Pro RT（extensible model）can be installed with battery extension packs.

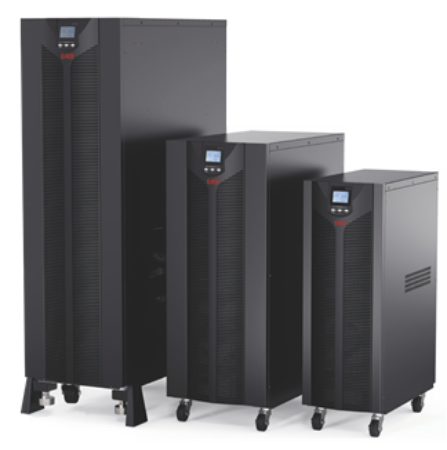

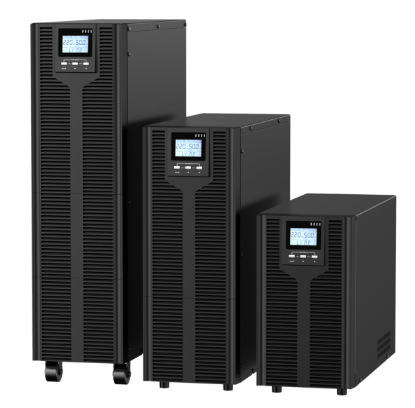

 Advanced DSP and 3-level technology  Output power factor 1.0  Active power factor correction (APFC), input power factor up to 0.99  High efficiency 95% (up to 98% in ECO mode)  Advanced digital parallel technology  Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz)  50 / 60 Hz frequency auto sensing  Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output  Dual-input design, supporting independent bypass  Flexible battery configuration (settable 16 - 20 pcs batteries)  Digitally controlled charger  High charging current available (Max. 12 A)  Charging voltage and current configured by demands  Linear derating in low voltage input reducing battery discharging times, extending the service life of battery  Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%  Ability to switch on the UPS with batteries  Settable delayed start time when mains power is restored, reducing the impact on power grid or generator  Fan speed varies intelligently with temperature, reducing noise and extending its service life  Equipped with self-aging function  Compact internal layout, miniaturized the complete unit for small footprint  LCD+LED display, multi-functional keys operation, friendly human-machine interface  Powerful background software for parameters configuration  Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces  Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check Available Options  RS232 and smart card slot included  Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms

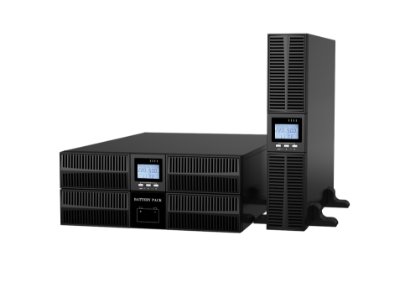

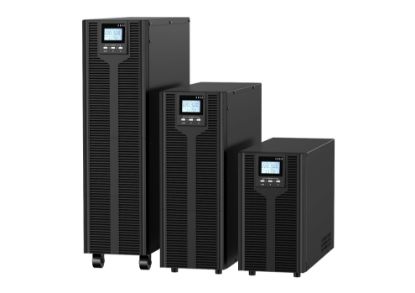

Advanced DSP and 3-level technology Output power factor 1.0 Active power factor correction (APFC), input power factor up to 0.99 High efficiency 95% (up to 98% in ECO mode) Advanced digital parallel technology Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz) 50 / 60 Hz frequency auto sensing Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output Hot-swappable battery Flexible battery configuration (settable 16 - 20 pcs batteries) Digitally controlled charger High charging current available (Max. 12 A) Charging voltage and current configured by demands Linear derating in low voltage input reducing battery discharging times, extending the service life of battery Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50% Ability to switch on the UPS with batteries Settable delayed start time when mains power is restored, reducing the impact on power grid or generator Fan speed varies intelligently with temperature, reducing noise and extending its service life Equipped with self-aging function Compact internal layout, miniaturized the complete unit for small footprint LCD+LED display, multi-functional keys operation, friendly human-machine interface Powerful background software for parameters configuration Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check Available Options RS232 and smart card slot included Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms

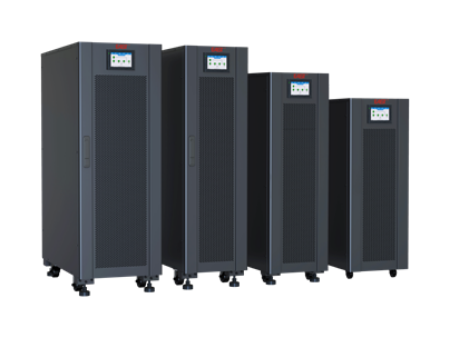

Advanced DSP and 3-level technology Output power factor 1.0 Active power factor correction (APFC), input power factor up to 0.99 High efficiency 95% (up to 98% in ECO mode) Advanced digital parallel technology 3：1 to 1：1 model settable Wide input voltage range (190 ~ 499 Vac) and frequency range (40 ~ 70 Hz) 50 / 60 Hz frequency auto sensing Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output Dual-input design, supporting independent bypass Flexible battery configuration (settable 16 - 20 pcs batteries) Digitally controlled charger High charging current available (Max. 10 A) Charging voltage and current configured by demands Linear derating in low voltage input reducing battery discharging times, extending the service life of battery Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50% Ability to switch on the UPS with batteries Fan speed varies intelligently with temperature, reducing noise and extending its service life Equipped with self-aging function Compact internal layout, miniaturized the complete unit for small footprint LCD+LED display, multi-functional keys operation, friendly human-machine interface Powerful background software for parameters configuration Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check Available Options RS232 and smart card slot included Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms

Advanced DSP and 3-level technology Output power factor 1.0 Active power factor correction (APFC), input power factor up to 0.99 High efficiency 95% (up to 98% in ECO mode) Advanced digital parallel technology 3：1 to 1：1 model settable Wide input voltage range (190 ~ 478 Vac) and frequency range (40 ~ 70 Hz) 50 / 60 Hz frequency auto sensing Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output Dual-input design, supporting independent bypass Hot-swappable battery (10 kVA) Flexible battery configuration (settable 16 - 20 pcs batteries) Digitally controlled charger High charging current available (Max. 10 A) Charging voltage and current configured by demands Linear derating in low voltage input reducing battery discharging times, extending the service life of battery Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50% Ability to switch on the UPS with batteries Settable delayed start time when mains power is restored, reducing the impact on power grid or generator Fan speed varies intelligently with temperature, reducing noise and extending its service life Equipped with self-aging function Compact internal layout, miniaturized the complete unit for small footprint LCD+LED display, multi-functional keys operation, friendly human-machine interface Powerful background software for parameters configuration Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check Available Options RS232 and smart card slot included Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms
