This series of UPSs is the ideal emergency power supply solution for protecting critical equipment from power blackouts, brownouts and surges. A typical application is that during a power outage this UPS enable an elevator system to come to the nearest floor and door to open so that people would not get stuck in an elevator. Features  Wide input voltage range  Selectable LCD display, 3 LED display and 6 LED display  Microprocessor-based digital control  Intelligent battery management  Unattended function available  Support starting and running without battery  Superior protection and automatic system recovery  Wall / vertical mounting

A line-interactive UPS maintains the inverter in line and redirects the battery's DC current path from the normal charging mode to supplying current when power is lost. In this smart design, the battery-to-AC power inverter is always connected to the output of the UPS. When the input AC power is normal, the inverter of the UPS is in reverse operation and provides battery charging. Once the input power fails, the transfer switch will open and the power will flow from the battery to the UPS output. This design offers additional filtering and yields reduced switching transients since the inverter is always on and connected to the output.

LED display or LCD display selectable Microprocessor-based digital control Boost and buck AVR for voltage stabilization Auto sensing frequency Wide input voltage range with dual input voltage (115V & 220V) Power-on self test Cold start Auto restart when mains power is restored Auto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge Intelligent battery management: battery temperature compensation to extend the battery life; three-stage charging to shorten recharge time Short circuit, battery overcharge / overdischarge, overload, surge protections Automatic charging in OFF mode Optional no-load shutdown Optional RS232 / USB communication port and RJ11 / RJ45 protection Unattended safety shutdown: system alarm and auto Power-On / Off by RS232 or USB interface communicating with PC

Monitoring Software UPSmart

NP-series-Charging-Characteristics-1

NP-series- Charging-Characteristics

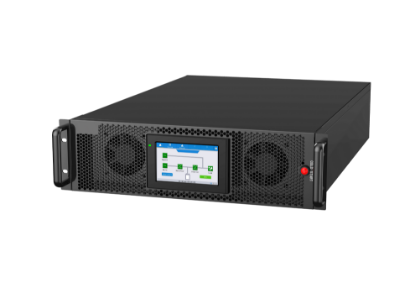

Advanced dual-core DSP control technology and 3-level technology Active power factor correction (APFC), input power factor up to 0.99 System efficiency is improved to 95%, energy saving rate is doubled Output power factor 1.0 Dual input design, supporting independent bypass Advanced digital and parallel technology, providing higher reliability than single system Wide input voltage range 50 / 60 Hz auto-sensing frequency 50 / 60 Hz frequency conversion mode Work efficiency up to 98% in ECO mode Fan speed varies intelligently with load, reducing noise and extending its service life Conformal coating technology to make UPS operate in harsh environment for a long time Flexible battery configuration setting, selectable battery numbers: 32~ 40 pcs Digitally controlled charger (Max.10 A) Ability to switch on the UPS by battery in the absence of mains power (Cold start) Zero switching time for UPS power supply mode when the mains power is unstable, ensuring the output is uninterrupted Compact internal layout, small footprint 5 inches LCD colorful touch screen, friendly human & machine interface Powerful background software for parameters configuration and online upgrade Advanced multi-platform communication for UPS monitoring: RS232,USB,RS485,dry contacts, SNMP card,Wi-Fi card and GPRS card Linear derating in low voltage input, reducing battery discharging times, extending the service life of battery Intelligent battery management, automatic equalized and float charging control, charger dormancy control, improving the reliability of charger and extending the battery life Effective hardware and software protection, robust self-diagnosis function, abundant event log for future check Standard RS232,USB,RS485,EPO,Dry contacts,Parallel port Optional SNMP card,WI-FI card,GPRS card, SMS alarms

High frequency and true double conversion DSP digital control technology Input power factor correction (PFC) Wide input voltage range Output power factor 1.0 Cold start Auto sensing frequency ECO mode operation for energy saving Selectable output voltage via LCD 50Hz/60Hz frequency conversion mode available Built in output isolation transformer Selectable battery low voltage via LCD Power-on self test Advanced battery management (ABM) Short circuit and overload protection Automatic charging battery in OFF mode Fan speed auto control when loads varies Standard RS232 communication port and RJ45 protection Optional USB/SNMP communication port Optional emergency power off (EPO) Optional extension battery bank Optional manual bypass Optional N+X redundancy parallel
